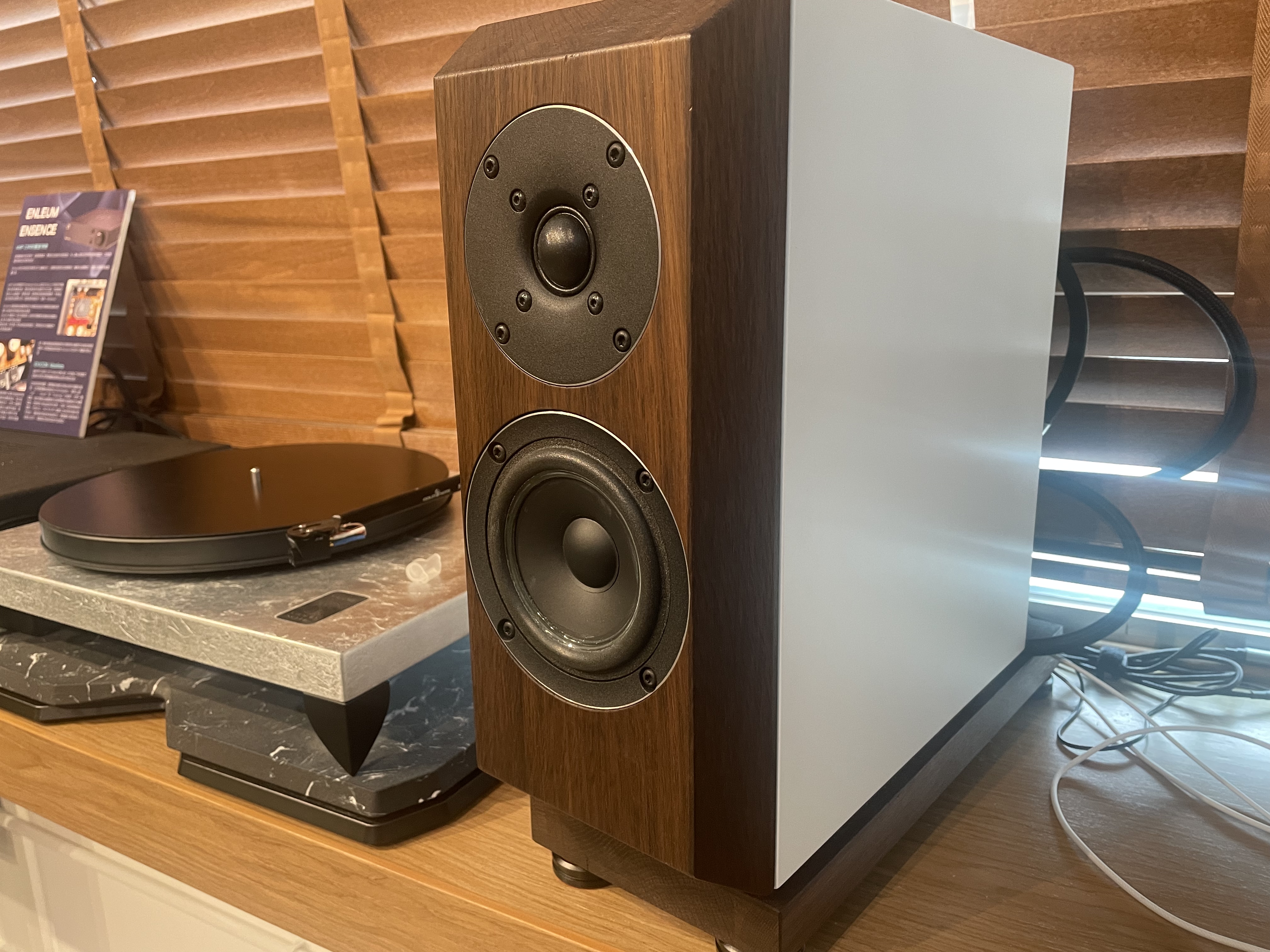

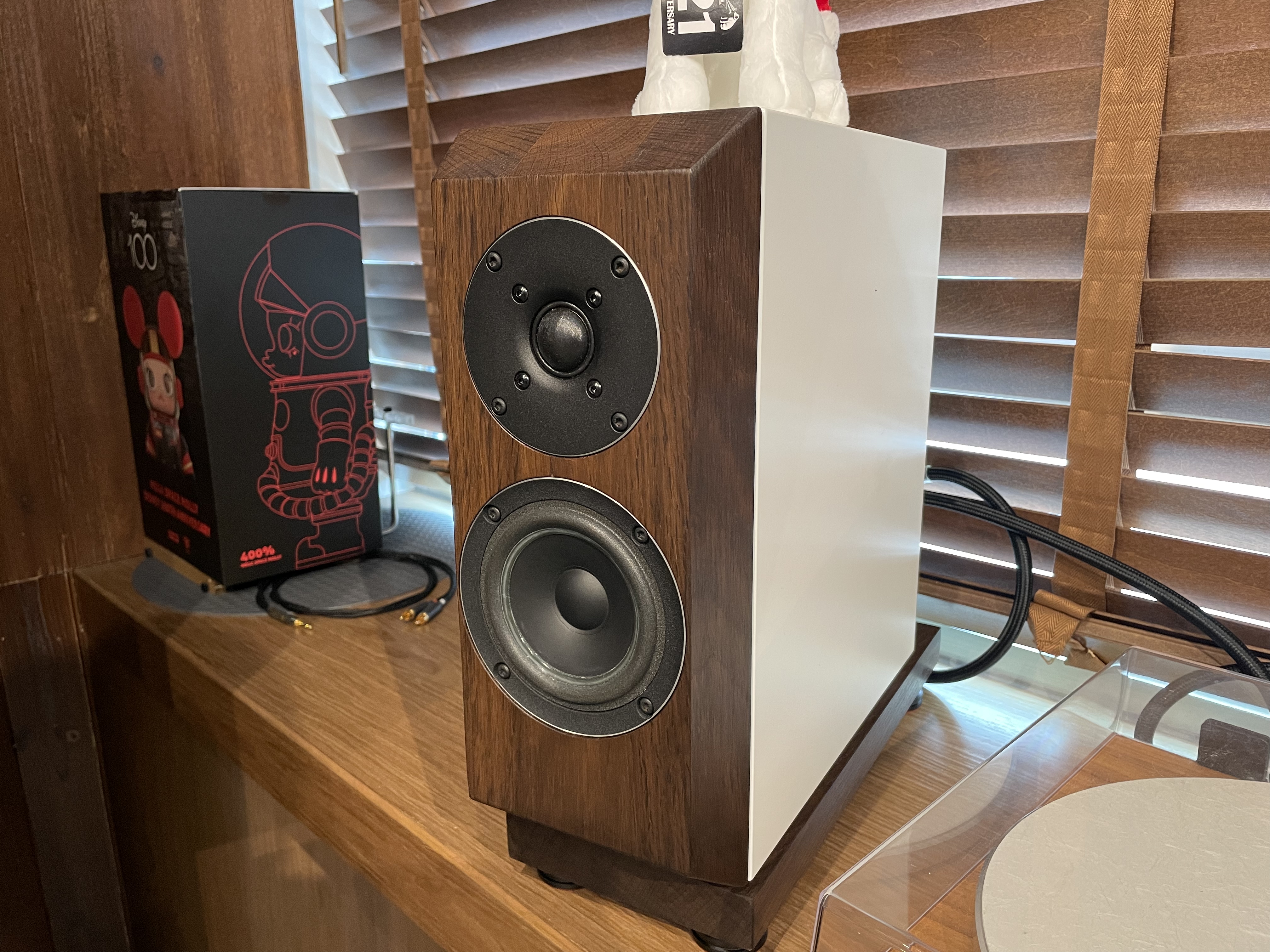

Joachim Gerhard Darling Speaker

Quantity

Summary

+ Description Design: – 2 way reference mini monitor – Extremely resonance-damped cabinet with minimum sound transmission because of 40mm thick baffle – Large baffle phases minimize edge diffractions – Transitional crossover for excellent linearity and low energy storage – Ceramic chassis with unusually low distortion factor Technical data: – Impedance : 4 Ohm – Efficiency: 86dB / 1m / 2.85V – Power rating: 60W – Amplifier recommendation: from 2x20Watt – Frequency response: ( – 3dB ) 60 Hz – 30 kHz – Linearity: + – 1.5dB – Distortion factor at 90dB below 0.5% above 200 Hz – Reflex tuning: 60 Hz – Transitional crossover with high linearity and low energy storage – Takeover frequency: 2.2 kHz – Dimensions: H|W|D 34,5 cm x 15,5 cm X 30cm – Weight: 7,1 kg – Principle: 2-way bass reflex monitor Loading: – Tweeter with 26mm ceramic sandwich diaphragm. Copper cap. – Woofer with 12cm ceramic sandwich cone. Faraday ring. Lowest mechanical losses
